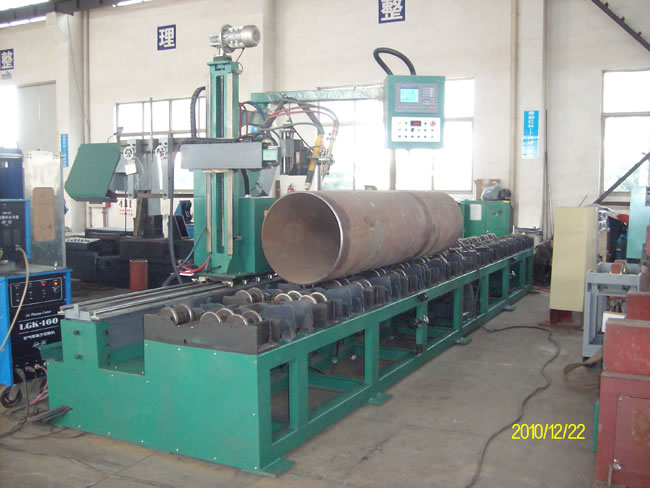

Pipe Flame Beveling and Cutting Machine
Features
1. The on-line performance of the pipe flame beveling and cutting machine is very good (designed as per the on-line equipment of the production line).
2. The pipe flame beveling and cutting machine offers a beveling speed of ≤3Min /pipe bevel (DN200 SCH40)/≤5Min/two pipe bevels (DN200 SCH40).
3. It offers bevel cutting: Cutting off and with one bevel of the pipe at simultaneously for/cutting off and with two bevels of the pipe simultaneously.
4. It offers good bevel quality.
Technical Parameters of the Pipe Flame Beveling and Cutting Machine
(Roller Bench Type)
Pipe Diameter Applicable: DN100~600(φ114~610)
Applicable Wall Thickness: 5~50 mm
Applicable Materials: Carbon steel, alloy steel, and cryogenic steel
Cutting Length: 6350MM
Bevel Shape: V
Cutting Direction: Lengthwise
Roller Bench:
(1). Structure: Three line steel roller with fixed distance
(2). Roller Bench Length: 7000MM
(3). Driving System: Servo motor + precision reducer
(4). Rev: 0~2.5M/Min (VF stepless speed adjustment)
(5). Roller Bench Material: 45#, Surface bluing treatment
(6). Rotation Accuracy: <2.0MM
Trolley System:
(1). Trolley Travel: 6350MM (moving lengthwise)
(2). Cutting Torch Travel: 700MM (up/down); 300MM (in/out)
(3). Cutting With: Flame cutting (can be equipped with plasma cutting)
(4). Cutting Torch Angle: ±45° (adjustable)
(5). Cutting Torch Quantity: One piece of flame cutting torch/three pieces of flame cutting torch
(6). Angle Error: <2°
(7). Length Fixing Accuracy:<2.0MM
Control System: SH-2000H Flame CNC Cutting System
Length-Measuring System: CNC length measuring which is included in the control system
Conveying System: Built in conveying system equipped with a lifter; additionally, a set of conveying system can be provided for bevel cutting machine if necessary and conveying can be implemented manually or electrically.
As a specialized pipe flame beveling and cutting machine manufacturer and supplier based in China, FOCUS also provides axial pipe end beveling machine, pipe automatic welding machine, pipe cutting and beveling workstation, piping fabrication fast fitting-up machine, and more.

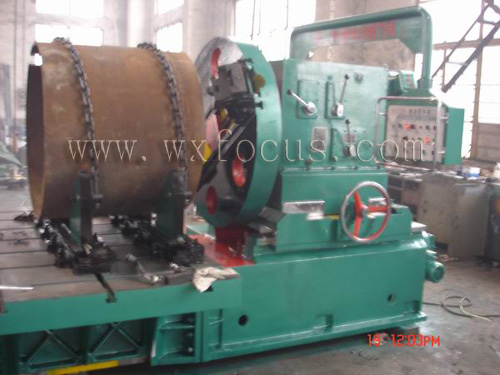

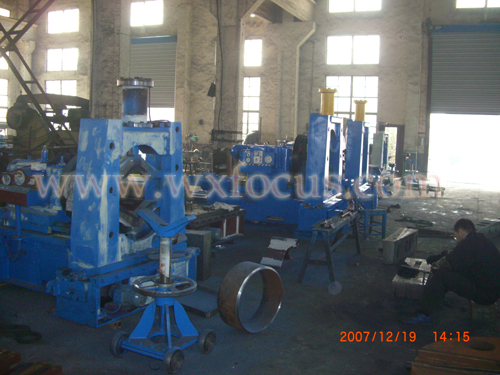

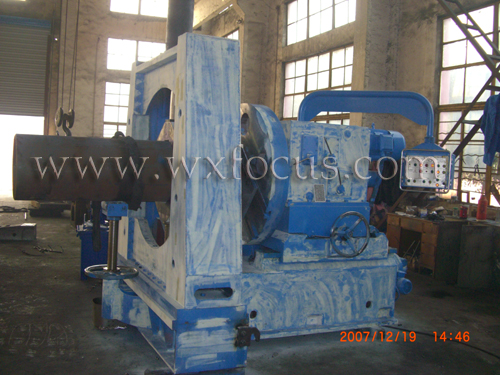

Pipe face bevelling machine
This lathe is suitable for such making , pipeline installation unit's use of pipe fittings in the trade as the hydropower station , petroleum , chemical industry , shipbuilding ,etc.; It is pipe fittings making and pipeline that is it weld head tube end slope key equipment that bevelling processed to construct.
This grade of bed can compound different jigs , can process OD 400 - straight tubes and OD400 - the curved and first class tube end slope bevelling of OD 820s of OD1020 ; One hundred sheetses of plate on furnished with angle of not can process thick to greater than 14 mm.s by pipeline not high-pressure , not floating there aren't knife rest in wall the knife restsing; Angle knife rest regulate after the position cutting processing according to different pipe diameter by differential organization transmission; Clamping the device adopts the structure of the platform and flexibility to clamp and can expand the range of processing and reduce the pipe fittings out of shape ; Pipe fittings is it adopt power head about move and jig platform electronic method to go up and down up and down by hand to let; Electric to adopt at operating case is it operate lathe every movement to concentrate onning, convenient and reliable.
Lathe this make up by power head , one hundred sheetses of records of organization , organization , electric control system ,etc. five major parts , organization of lathe bed and platform of jig.
++Motive force head:
Power this head is it output by motor six shelf main shaft move rapidly and 3 kinds of differential knife rests is it work up rapidly to give closely to change speed through gear wheel; Tail furnished with knife rest is it advance and retreat organization to lock soon while being electronic also, can alone or with differential to is it give meanwhile using to enter.
++One one hundred sheets of organizations:
Can install the angle knife rest on this knife of plates , should need to regulate the corresponding position of knife rest according to processing the size of pipe diameter , can carry on the work of cutting ; The angle knife rest is moved the transmission to cut differentially rapidly.
++Lathe bed organization:
Lathe bed installation enter give organization while being vertical while being electronic, manual to regulate organization , lathe bed and delay the package of the board while being horizontal, is it give by fast to stock two move rapidly with worker to enter while being vertical while being electronic, two speed can with to work while being reverse alone or at the same time.
++Jig platform organization:
Jig seat frame install platform and hoist or lower organization while being electronic, platform have vertical , horizontal Model T trough for install pipe fittings prop up flat and flexibility clamp organization.
++Electric control system:
The electric component is installed in the electric special-purpose case, operate the component and install in the manipulation case of the hanging type, operate on handling the case in movement of the lathe
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
 |
 |
 |
