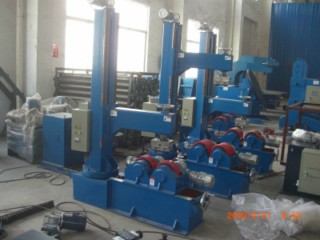

Pipe Type Manual and Motorized Welding Rotator of 5 Tons



Detailed Product Description


Pipe rotator is specially designed and manufactured for purpose of meeting the requirements of enhancing productivity, increasing the extent of automatic, reducing welder’s working intensity and adapting to piping workshop prefabrication. The welding head will be relatively fixed, while the piping spool piece revolving at a specific rate, and the high efficient and low cost shielded welding or SAW process is adopted, so it has the features of easy-operation, reliable-performance and wide-application field.


Product Application:
Used to weld, polish and assemble the cylinder-shells, and to line the shells with rubber.
Product Advantage:
  1. Pipe type, convenient
  2. high quality
  3. Reasonable price
  4. good service
Specification:

Model
Pipe dia.(mm)
Max load(tons)
Motor power(kw)
Wheel speed(m/min)
Column elevating
Overall Dim(L*W*H)
PR0.5
50-350
0.5
0.37
0.1-1
Manual
1260*500*410
PR1
50-426
1
0.55
1260*500*410
PR5
50-630
5
1.3
Motorized
1900*1500*700
PR10
100-1000
10
1.6
2240*1510*800


Horizontal Adjustment Tank Turning

Rotator

Detailed Product Description

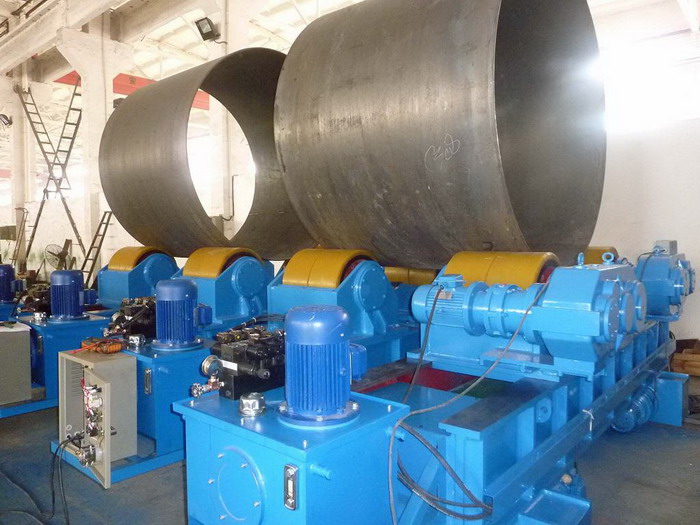

 it Up Rolls, FUR SERIES: Designed for align and assembling shell to shell or section to section, round and conical. Ideal for construction of wind towers, steel vessels and tank

Standard package includes: a) One power rotator Model FUR WR with control box and 12.00 meters length remote control for adjusting of rotating speed, stop, forward, and reverse. Digital speed indicator set for mm/min is included, b) Three idler rotator Model FUR IR, c) Operation manual, d) One year guaranty.

Optional: a) Foot control pedal for control forward, stop and reverse rotation; b) Extra idler rotators Model FUR IR-IB may be required depending of work piece length; c) Rail tracks

Notes:
a) Custom built fit up rolls available. Required information: i) Tank weight, ii) Vessel diameter range (min- max)
b) Vertical adjustment of work piece: Both wheels of the same rotator has hydraulic   lifting device which allows the wheels to move synchronized (right/left or left/right). While the wheel moves horizontally the work piece is lifted/lowered vertically
c) Horizontal adjustment of work piece: Two rotators have a hydraulic device which allows each wheel to move independently (right/left or left/right) for  horizontal adjustment
d) Fit up detailed sequence: Available under customer request
e) Inside and outside circumferential seam welding: By means of a Welding Manipulator WM Series with SAW head

Product Application:
Used to weld, polish and assemble the cylinder-shells, and to line the shells with rubber.

Product Advantage:
  1. Fit-up type, convenient
  2. high quality
  3. Reasonable price
  4. good service

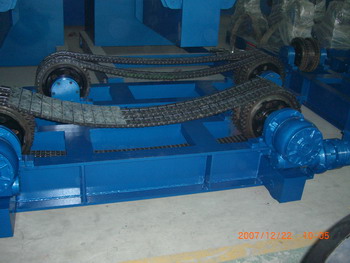

  CWR Series are used for thin thickness vessels’ applications. Chain rubber covered available for stainless application

    Standard package includes: a) One power roll with control box and 6.00 meters long remote control for adjusting of rotating speed, stop, forward, and reverse. Digital speed indicator set for mm/min is included, b) One idler roll, c) Operation manual, d) One year guaranty.

Optional: a) Chain rubber covered, b) Foot control pedal for control forward, stop and reverse rotation; c) Rolls mounted over manual or motorized bogies







model

max load capacity(tons)

vessel diameter

diameter and width of wheel



motor power, kw

wheel speed

m/min



Gross weight  (tons)

D

mm

W

mm



CWR40

40

3200-3900

350

180



2.2

0.1-1

VFD



5.0

























































Notes: a) Power rotator capacity 40 ton, load capacity 10 tons, b) Idler Rotator load capacity: 10 tons, c) Full set for 40 tons: 1 Power + 3 Idlers, d)

Center to center distance between wheels: 2.40 m. Vessel on range above rest over chain only, e) Custom built Welding Rotators available





Detailed Product Description



Custom Built Ajustable Fit-up Tank Turning Rotators

it Up Rolls, FUR SERIES: Designed for align and assembling shell to shell or section to section, round and conical. Ideal for construction of wind towers, steel vessels and tank

Standard package includes: a) One power rotator Model FUR WR with control box and 12.00 meters length remote control for adjusting of rotating speed, stop, forward, and reverse. Digital speed indicator set for mm/min is included, b) Three idler rotator Model FUR IR, c) Operation manual, d) One year guaranty.

Optional: a) Foot control pedal for control forward, stop and reverse rotation; b) Extra idler rotators Model FUR IR-IB may be required depending of work piece length; c) Rail tracks

Notes:
a) Custom built fit up rolls available. Required information: i) Tank weight, ii) Vessel diameter range (min- max)
b) Vertical adjustment of work piece: Both wheels of the same rotator has hydraulic   lifting device which allows the wheels to move synchronized (right/left or left/right). While the wheel moves horizontally the work piece is lifted/lowered vertically
c) Horizontal adjustment of work piece: Two rotators have a hydraulic device which allows each wheel to move independently (right/left or left/right) for  horizontal adjustment
d) Fit up detailed sequence: Available under customer request
e) Inside and outside circumferential seam welding: By means of a Welding Manipulator WM Series with SAW head

Product Application:
Used to weld, polish and assemble the cylinder-shells, and to line the shells with rubber.

Product Advantage:
  1. Fit-up type, convenient
  2. high quality
  3. Reasonable price
  4. good service

Detailed Product Description



Wheel frame drive the cylindrical (or conical) welding rotating device by welding and active roller friction. Self alignment turning roller is suitable for welding of circular cylinder, which can adjust themselves according to cylinder size, and a variety of specifications for user choosing, large tonnage may design and manufacture. Adjustable turning rolls have manual lead screw adjusting, manual bolt shifting and electric sliding plate shifting 3 kinds.
By adjusting the center distance of roller, this is applicable different diameter cylinder.
Adjustable turning rolls apply to circular cylinder of welding, trolley spacing can adjust to adapt to the cylinder size. Roller spacing can be divided into lead screw-adjustable turning roller and bolt-adjustable turning roller. Adjustable turning rolls for double motor drive, frequency control method.
Our company in accordance with domestic and foreign similar products manufacturing experience, combined with the reality, for the first time adopted the English logo classification: WR5-2000.

Product Application:
Used to weld, polish and assemble the cylinder-shells, and to line the shells with rubber.

Product Advantage:
  1. Adjustable type, convenient
  2. high quality
  3. Reasonable price
  4. good service
